  • Longi 540W Solar Panel
1 1

PAN-LONGI-540W

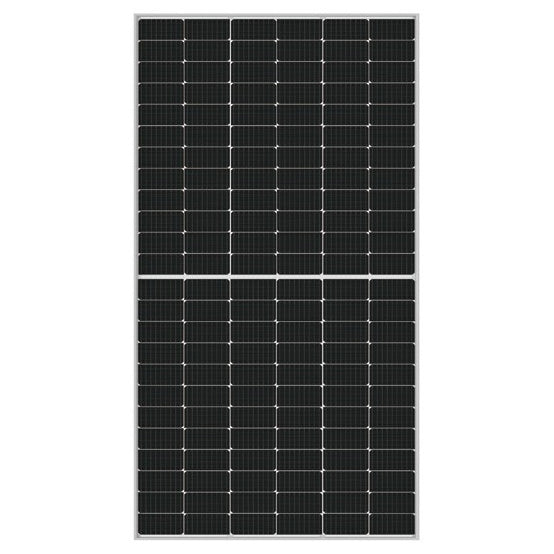

Longi 540W Monocrystalline and Bifacial Solar Panel | LR5-72HBD-540M

$245.11
$245.11
En vente Épuisé
Power (W): 540W

The Longi LR5-72HBD-540M solar panel is designed for optimal performance, offering 540W of power and a high efficiency of 21.1%.

With its bifacial technology, it captures light from both sides to increase energy yield, making it an excellent choice for rooftop or ground-mounted installations.

Equipped with monocrystalline PERC cells and a robust tempered glass structure, this panel ensures outstanding durability and resistance to harsh weather conditions.

It operates efficiently even in low-light environments, providing a stable and reliable energy output throughout the year.
  • Livraison gratuite
  • Paiement sécurisé
  • Retours gratuits

Livraison standard gratuite à partir de 100 $

Paiement sécurisé avec
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Afficher tous les détails

Longi 540W Monocrystalline and Bifacial Solar Panel at a glance

Max PowerMax Power
540W		 TechnologyTechnology
Monocrystalline - Bifacial		 DimensionsDimensions
88.8 x 44.6 x 1.38 in		 WeightWeight
71.2 lbs / 32.3 kg
ConnectorConnector Type
MC4		 VoltageOpen Circuit Voltage
49.5 V		 CurrentShort Circuit Current
13.85 A		 WarrantyWarranty
12 Years Material
30 Years Production

Technical Specifications

  • Nominal Power: 540W
  • Cell Type: Monocrystalline PERC
  • Technology: Bifacial half-cell
  • Efficiency: 21.1%
  • Open Circuit Voltage (Voc): 49.50V
  • Short Circuit Current (Isc): 13.85A
  • Voltage at Maximum Power (Vmp): 41.65V
  • Current at Maximum Power (Imp): 12.97A
  • Operating Temperature: -40°C to +85°C
  • Dimensions: 2256 x 1133 x 35 mm
  • Weight: 27.2 kg
  • Power Tolerance: 0~+5W
  • Weather & Hail Resistance: IEC 61215 and IEC 61730 certified
  • Product Warranty: 12 years
  • Performance Warranty: 25 years (80% of initial power output)

With its optimized design to minimize power losses and compatibility with various inverters, the Longi LR5-72HBD-540M is the perfect choice for those seeking a high-performance, durable, and cost-effective solar solution.

Download Datasheet (PDF)
